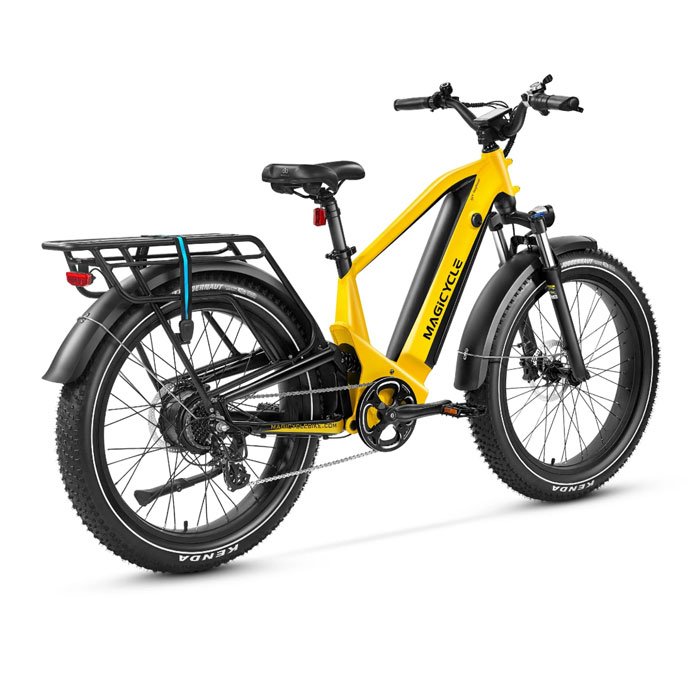

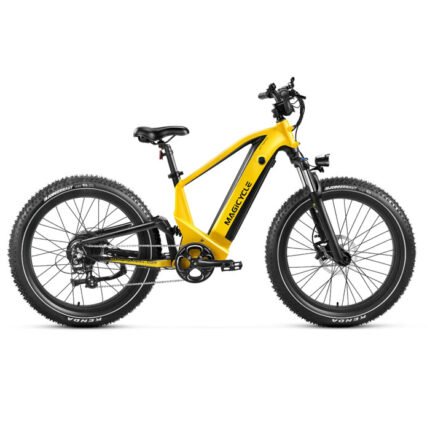

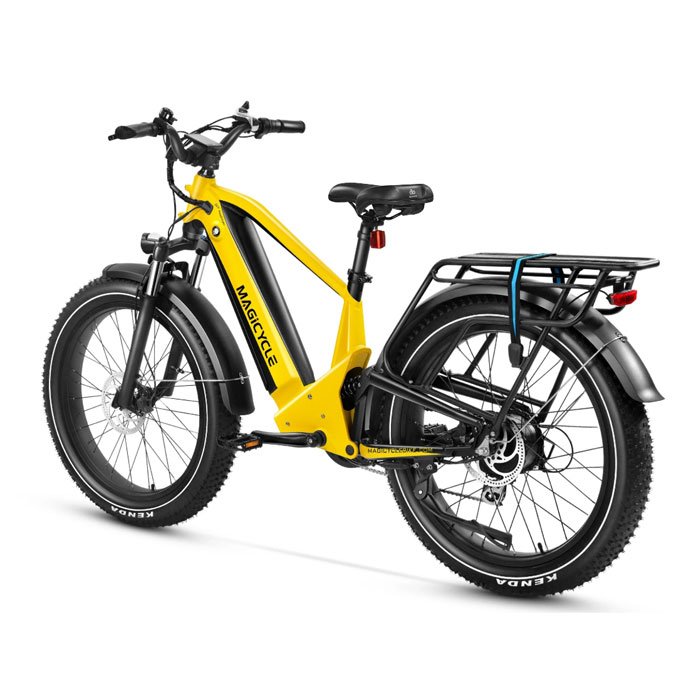

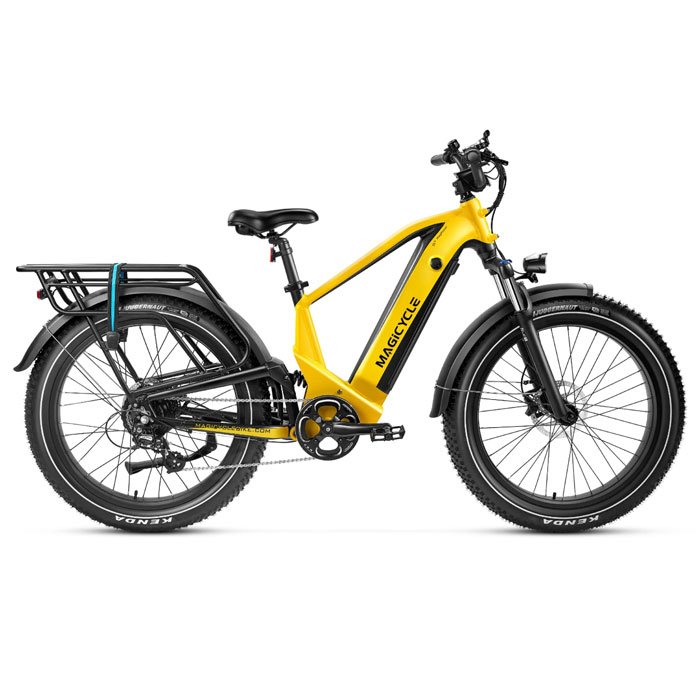

Magicycle Deer Step-Over Full Suspension
$1,599.00
-
The Magicycle Deer Step-Thru is a powerful, full-suspension electric bike designed for comfort and versatility across various terrains.
Out of stock
Magicycle Deer Step-Thru Full Suspension Fat Tire Electric Bike
The Magicycle Deer Step-Thru is a versatile electric bike designed for both urban commuting and off-road adventures. Dubbed the “SUV of e-bikes,” it features a full suspension system, a powerful 750W motor (peaking at 1100W), and a high-capacity 52V 20Ah LG battery, offering a range of up to 80 miles per charge. Its step-thru frame ensures easy mounting and dismounting, catering to a wide range of riders. With 26″ x 4″ Kenda fat tires and Tektro 180mm hydraulic disc brakes, the Deer provides stability, comfort, and safety across various terrains.
Key Features
Powerful Motor: 750W brushless gear motor with a peak output of 1100W and 96Nm torque for effortless hill climbs and acceleration.
Long-Range Battery: 52V 20Ah LG lithium battery providing up to 80 miles of range on a single charge.
Full Suspension System: Front alloy hydraulic lockout suspension fork and rear shock absorber for a smooth ride on rough terrain.
Hydraulic Disc Brakes: Tektro 180mm hydraulic disc brakes ensure responsive and reliable stopping power.
Color LCD Display: IPX6 water-resistant display with USB charging port, offering real-time riding data and customization options.
Puncture-Resistant Fat Tires: 26″ x 4″ Kenda fat tires provide stability and traction on various terrains.
Shimano 7-Speed Gear System: Allows for versatile riding across different terrains.
High Payload Capacity: Supports up to 400 lbs, accommodating a wide range of riders and cargo.
Technical Specifications
Battery: 52V 20Ah LG lithium battery.
Motor: 750W brushless gear motor (1100W peak).
Torque: 96Nm.
Range: Up to 80 miles per charge.
Top Speed: Up to 28 MPH with pedal assist.
Charging Time: 4–7 hours with a 3.0A fast smart charger.
Display: Color LCD with USB charging port.
Pedal Assist: 7 levels with 12-magnet cadence sensor.
Brakes: Tektro 180mm hydraulic disc brakes.
Tires: 26″ x 4″ Kenda puncture-resistant fat tires.
Frame Size: 18″ 6061 aluminum frame.
Weight: 92.3 lbs (41.9 kg).
Payload Capacity: Up to 400 lbs.
Recommended Rider Height: 5’5″ – 6’8″.
| Brand | Magicycle |
|---|---|
| Motor | 750W |
| Torque | 96Nm. |
| Range | Up to 100 miles per charge |
| Top Speed | 28+ MPH |
| Brakes | 180mm Hydraulic Disc Brakes |
| Tire Size | 26" X 4" Fat Tires |
| Frame | 18" 6061 Aluminum Frame |
| Payload Capacity | Max 450 lbs |
| Suspension | Front & Rear Shock |
| High-Power Motor | 750W/1500W peak |
| Battery | 52V 20Ah |
| Charging Time | 4 – 7Hours |
| Weight | Deer 26": 92.3lbs(41.9kg) / 20": 83lbs(37.6kg) |
| Package Dimension | Deer 26": 166CM x 33CM x 88.5CM /20": 154CM x 32CM x 77.5CM; |
| Charger | Short-circuit proof 3.0A fast smart charger |
| Recommended Rider Heights | Deer 26": 5'5" – 6'8" / 20": 4'10" – 6'2" |
| Controller | 52V 750W FOC smart controller, Current Range 20~25 Amps (IPX8) |
| Frame size | 18" |
| Display | Color LCD Display with USB Charging |
| Pedal Assist | 7-level Intelligent pedal assist with 12-magnet cadence sensor |
| Tire Type | Fat Tires |
| Brake Lever | Aluminum alloy comfort grip levers with motor cutoff switch |
| Lights | Integrated front and brake lights |
| Freewheel | Shimano-14-28T BROWN/BK |
| Spokes | 13 Gauge on the front / 12 Gauge on the back |
| Front Light | 6V LED light |
| Saddle | Super Soft Cushion |
| Seat Post | Diameter 33.9mm length 250mm |
| Kickstand | Heavy duty aluminum |
| Front Fork | Alloy Hydraulic lockout suspension fork |
| Throttle | Half twist throttle |
| Pedal | Wellgo alloy pedal with reflectors |
| Gears | Shimano 7 speed gear shift system |
| Chain | KMC chain |
| Stem | MA-400 SSABK |
| Crank | 53T, 170mm forged alloy, dual-sided bashguard |
