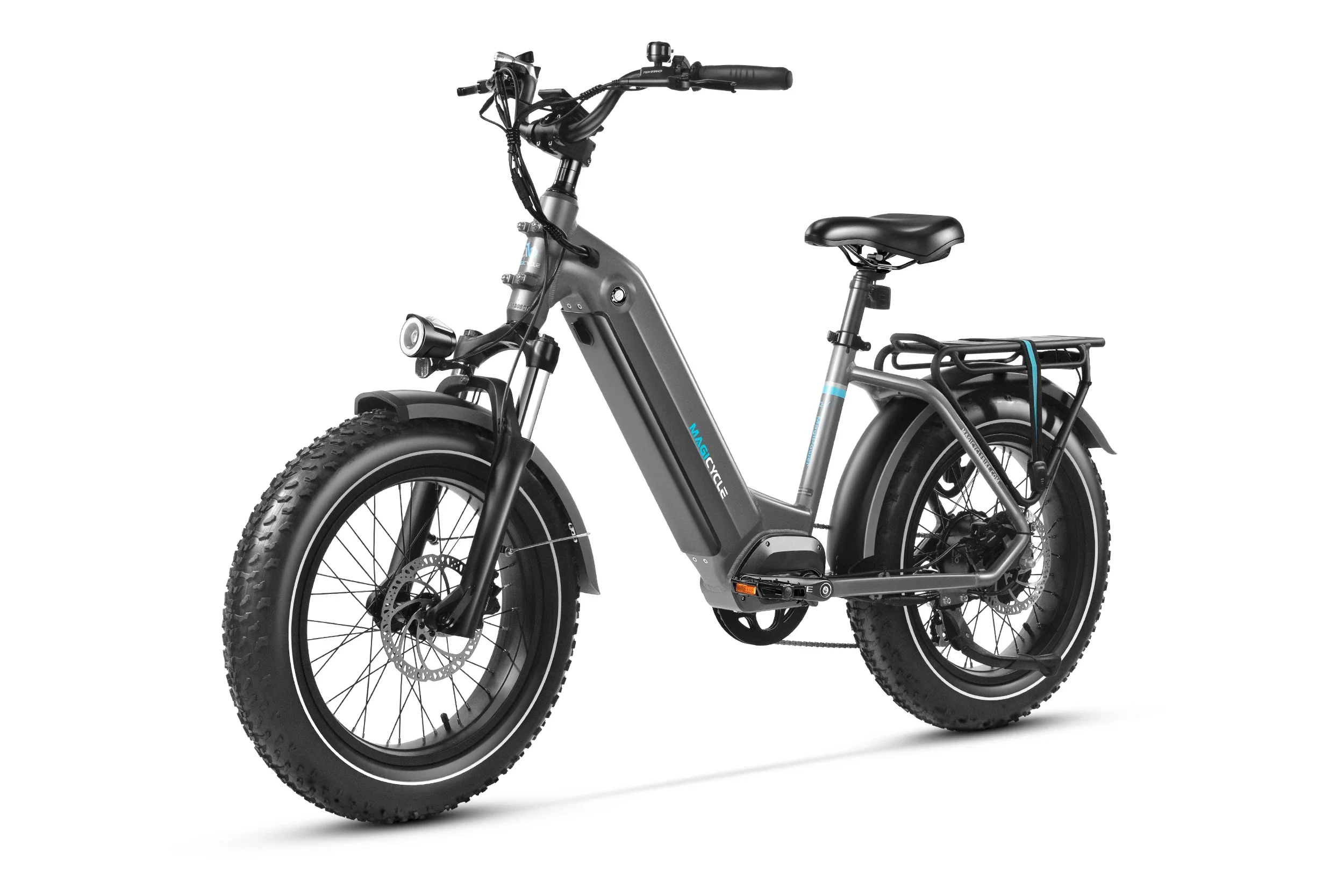

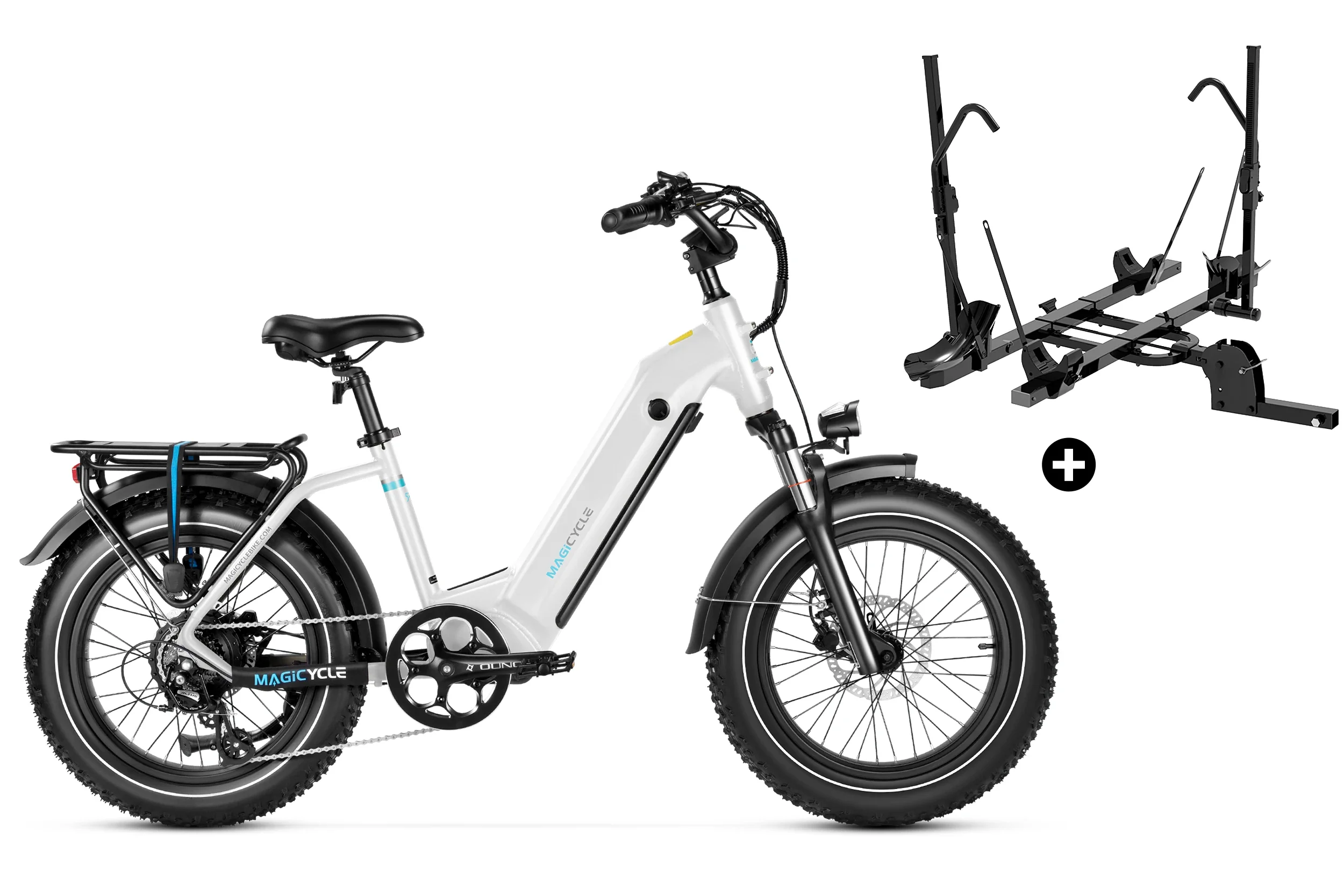

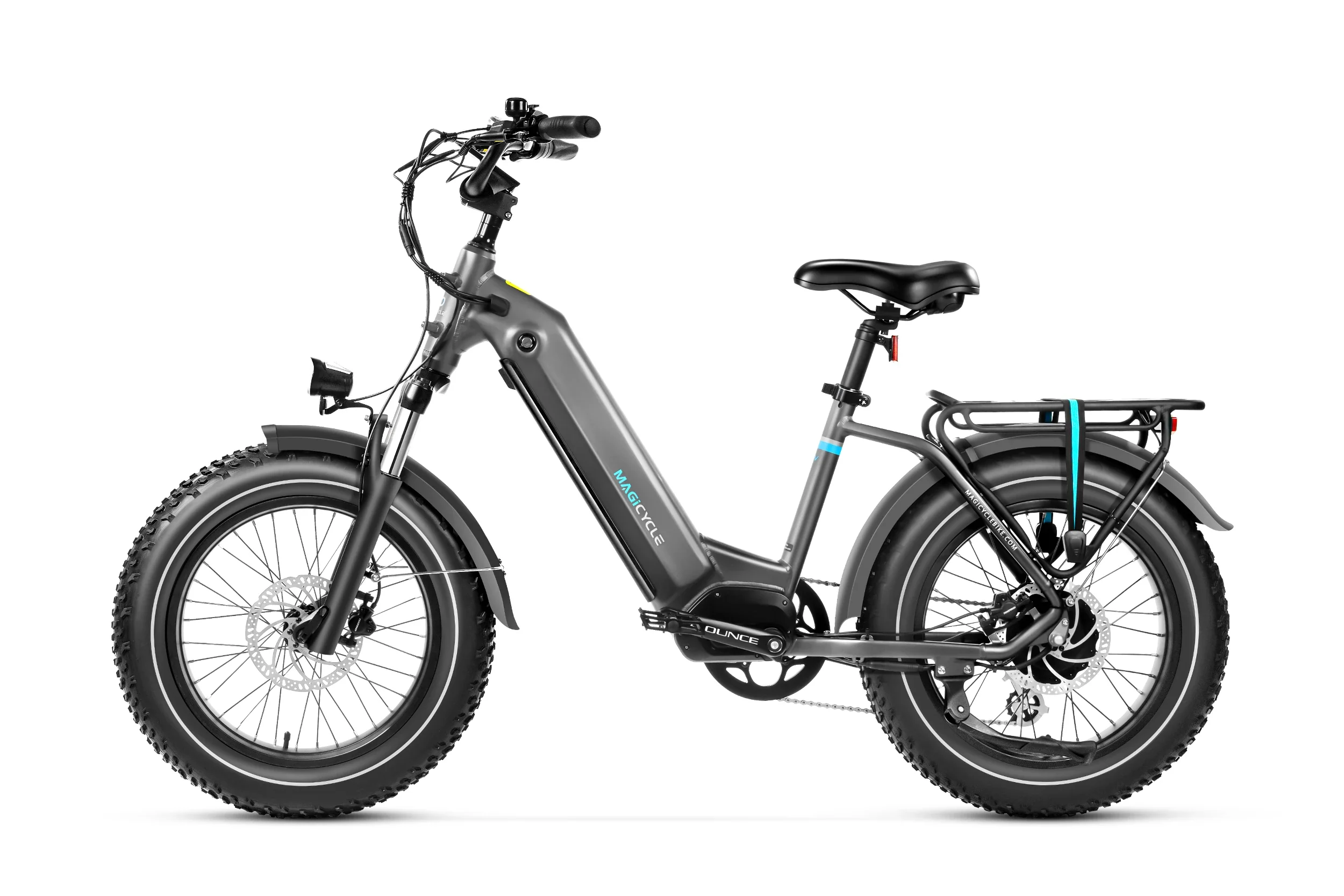

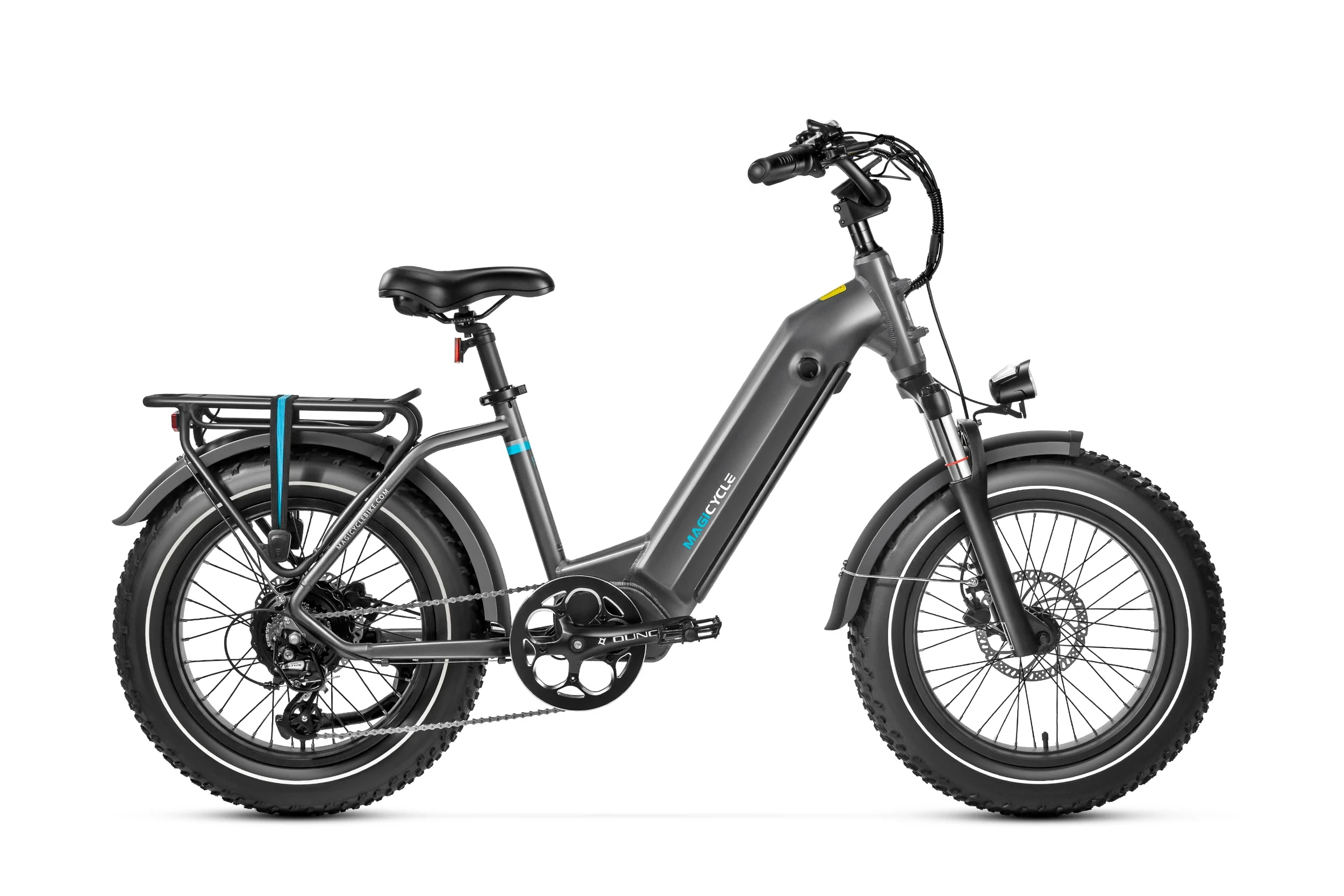

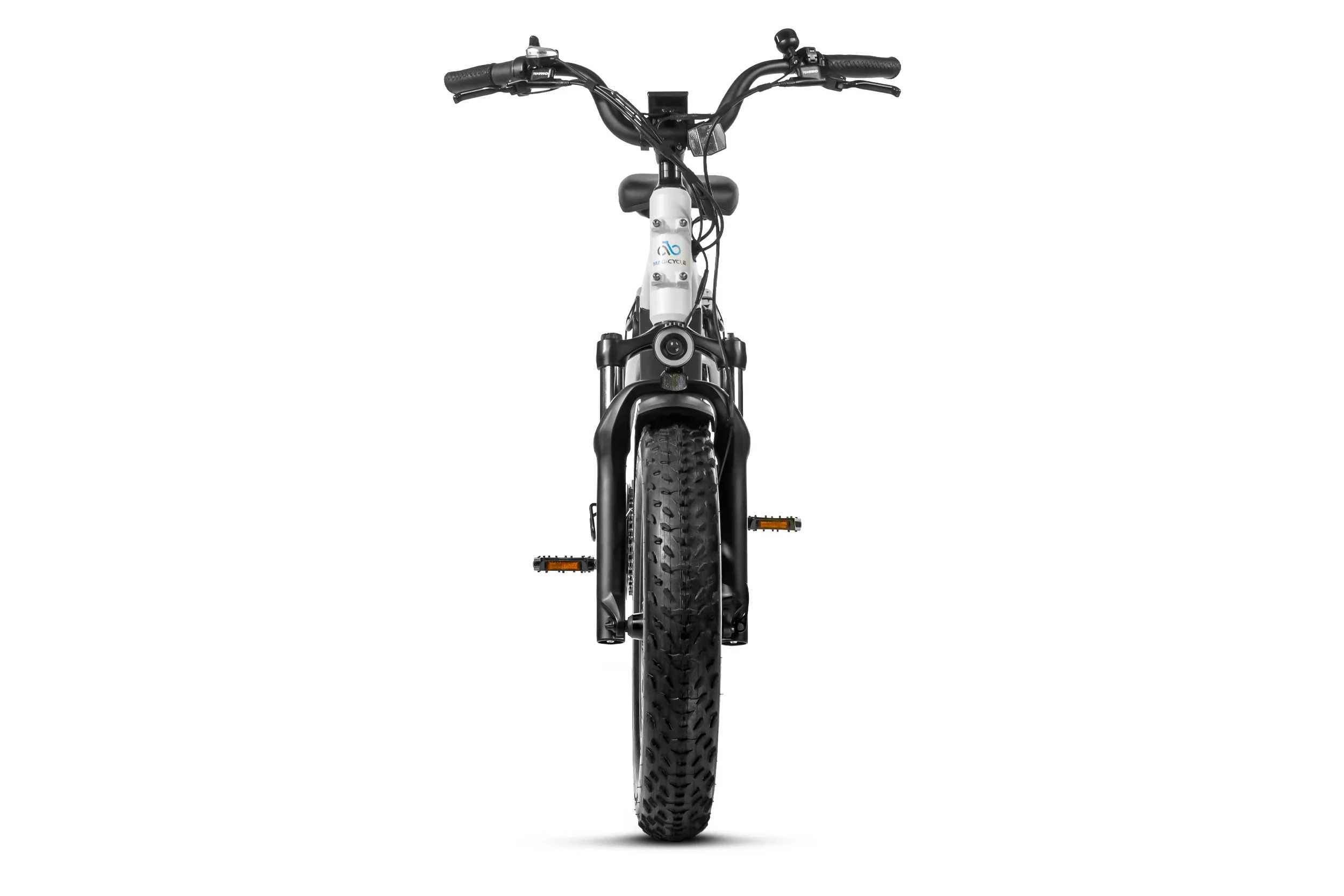

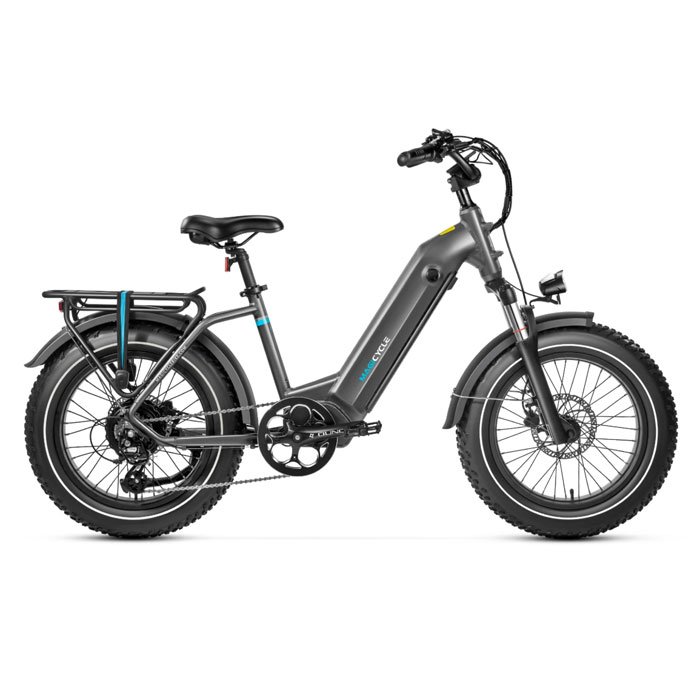

Magicycle Ocelot Pro Long Range Step-Thru Fat Tire Electric Bike
Original price was: $2,249.99.$1,649.99Current price is: $1,649.99.
A powerful step-thru fat-tire e-bike with a 750 W motor, 52 V 20 Ah battery, 100‑mile range, and rugged all-terrain capability.
The Magicycle Ocelot Pro is a step-thru fat-tire e-bike offering high performance and versatility. A 750 W motor (1 500W peak) powers you up to 28 mph, while the 52 V 20 Ah battery delivers an impressive 100‑mile range. With a durable 6061 aluminum frame, hydraulic front fork, 20″×4″ Kenda tires, and Tektro 180 mm hydraulic disc brakes, it’s built for rugged commutes and long adventures. Adjustable to riders from 4′10″ to 6′2″, this Class 2/3 e-bike combines comfort, power, and reliability for urban and off-road use.
Key Features
-
High-Power Motor: 750W (1 500W peak) rear hub delivers strong acceleration and climbs.
-

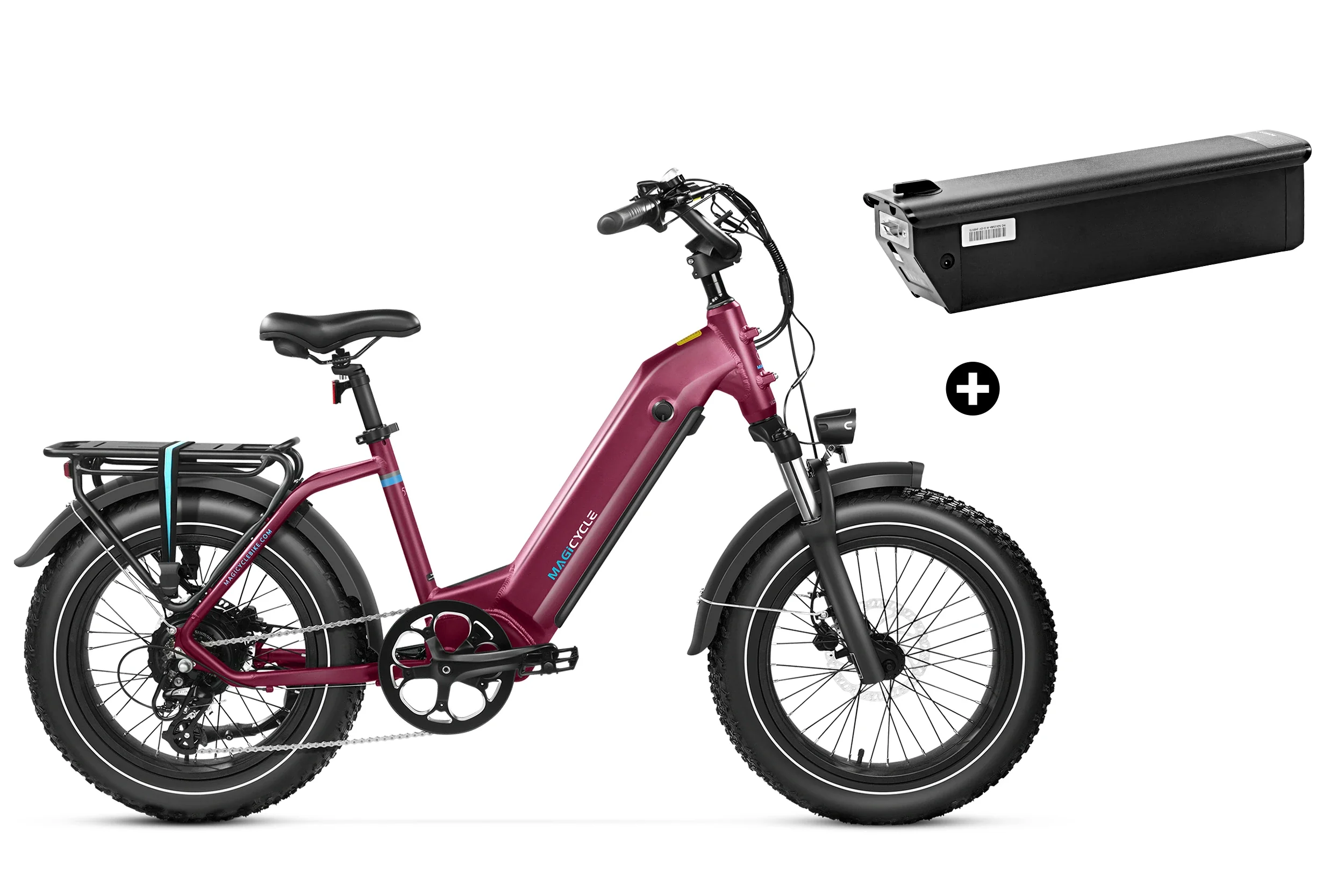

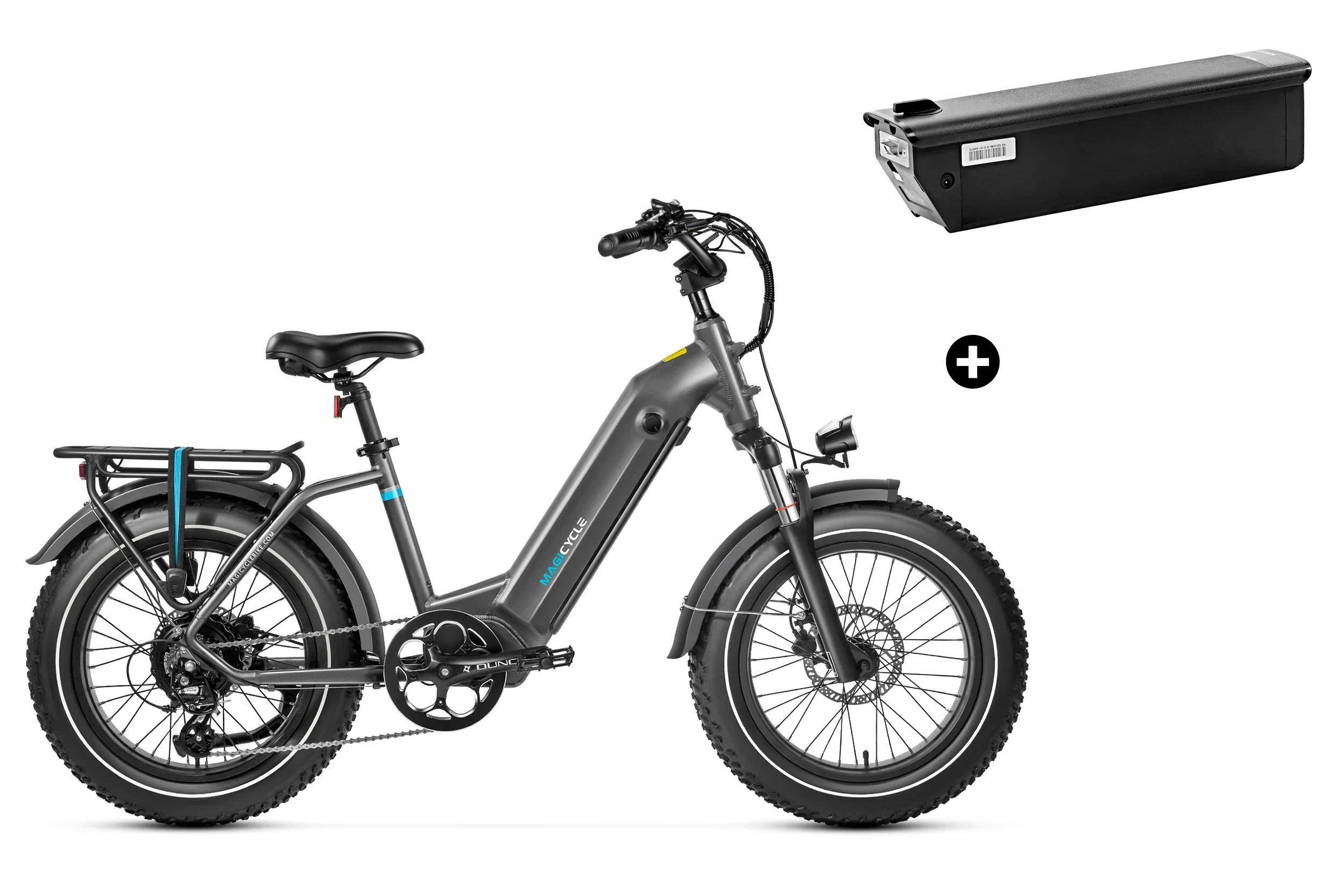

Long-Range Battery: 52 V 20 Ah LG lithium pack offers up to 100 miles per charge.
-
Step-Thru Frame: Low step-over and adjustable seat fit riders 4′10″–6′2″.
-
Fat Tires & Suspension: 20″×4″ tires and a hydraulic front fork absorb rough terrain.
-
Hydraulic Brakes: Tektro 180 mm hydraulic discs provide reliable stopping power.
-

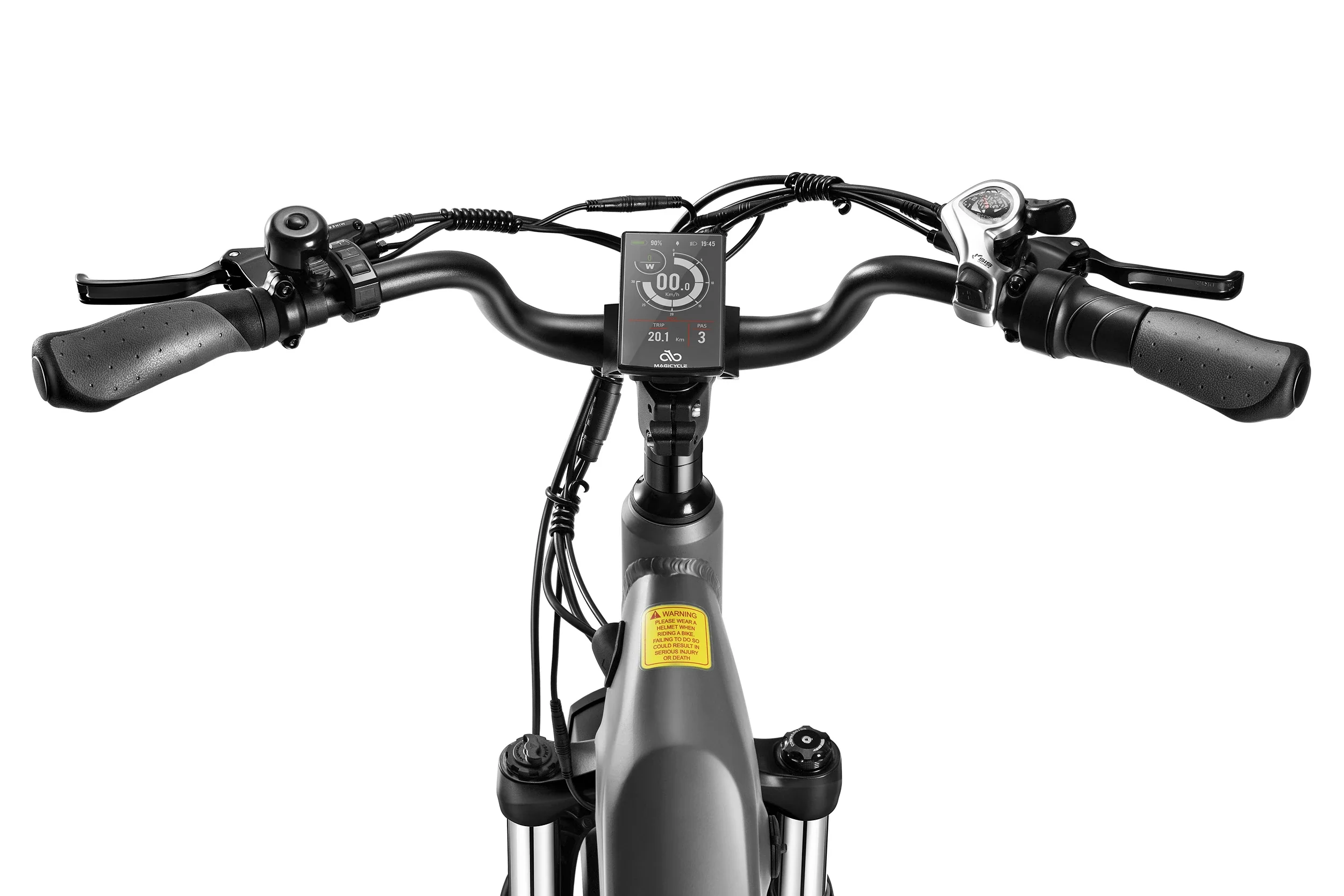

Color LCD Display: Waterproof screen with USB charging and customizable PAS levels.
-
Heavy-Duty Build: 6061 aluminum frame supports a 450 lb max load.
Technical Specifications
| Specification | Details |
|---|---|
| Motor | 750 W brushless hub (1 500 W peak, ~100 Nm torque) |
| Battery | Removable 52V 20Ah LG lithium |
| Range | Up to 100 miles per charge |
| Top Speed | 28 mph (Class 3) |
| Frame | 6061 aluminum step-thru, adjustable for 4′10″–6′2″ |
| Tires | 20″×4″ Kenda fat tires |
| Suspension | Hydraulic front fork |
| Brakes | Dual 180 mm Tektro hydraulic discs |
| Gearing | Shimano 7-speed derailleur |
| Pedal Assist | 7 levels with cadence sensor |
| Display | Color LCD w/ USB, waterproof |
| Controller | 52 V FOC smart (IPX8) |
| Weight | Approx. 73 lb |
| Max Load Capacity | 450 lb |
| Brand |
Magicycle |
|---|---|
| Battery |
Removable 52V 20Ah LG lithium |
| Range |
Up to 100 miles per charge |
| Top Speed |
28+ MPH |
| Frame |
6061 aluminum step-thru, adjustable for 4′10″–6′2″ |
| Tire Size |
20″×4″ |
| Tire Type |
Kenda Fat Tires |
| Suspension |
Hydraulic front fork |
| Brakes |
Dual 180 mm Tektro hydraulic discs |
| Gears |
Shimano 7 speed gear shift system |
| Payload Capacity |
450 lbs |
| Pattern | , , |
| Package Dimension |
61" x 14" x 35 |
| Display |
Color LCD Display with USB Charging |
| Frame size |
20" |
| Charger |
Short-circuit proof 3.0A fast smart charger |
| Controller |
52V 750W FOC smart controller, Current Range 20~25 Amps (IPX8) |
| Recommended Rider Heights |
4'10" – 6'2" |
| Charging Time |
4 – 6 Hours |
| Weight |
73lbs/33kg |
| Pedal Assist |
Intelligent 7 levels pedal assist with 12 magnet cadence sensor |
| Brake Lever |
Aluminum alloy comfort grip levers with motor cutoff switch |
| High-Power Motor |
750W/1500W peak |
| Disc Brakes |
Hydraulic |
| Crank |
48T, 170mm forged alloy, dual-sided bashguard |
| Stem |
MA-400 SSABK |
| Seat Post |
Diameter 30.9mm length 300mm |
| Pedal |
Wellgo alloy pedal with reflectors |
| Freewheel |
Shimano-14-28T BROWN/BK |
| Kickstand |
Heavy Duty Aluminum |
| Bike Frame |
20" 6061 Aluminum Frame |
| Spokes |
13 Gauge on the Front / 12 Gauge on the Back |
