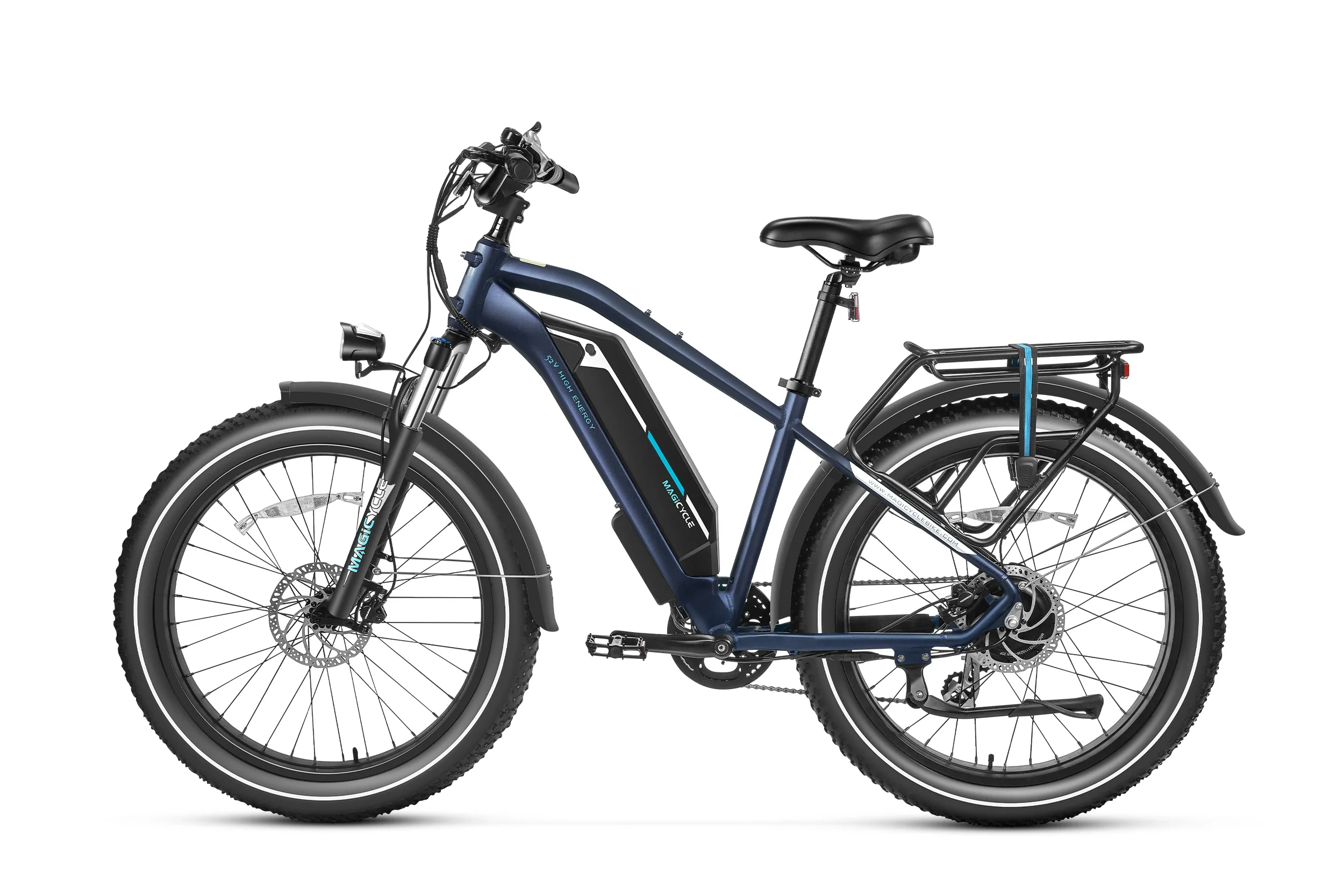

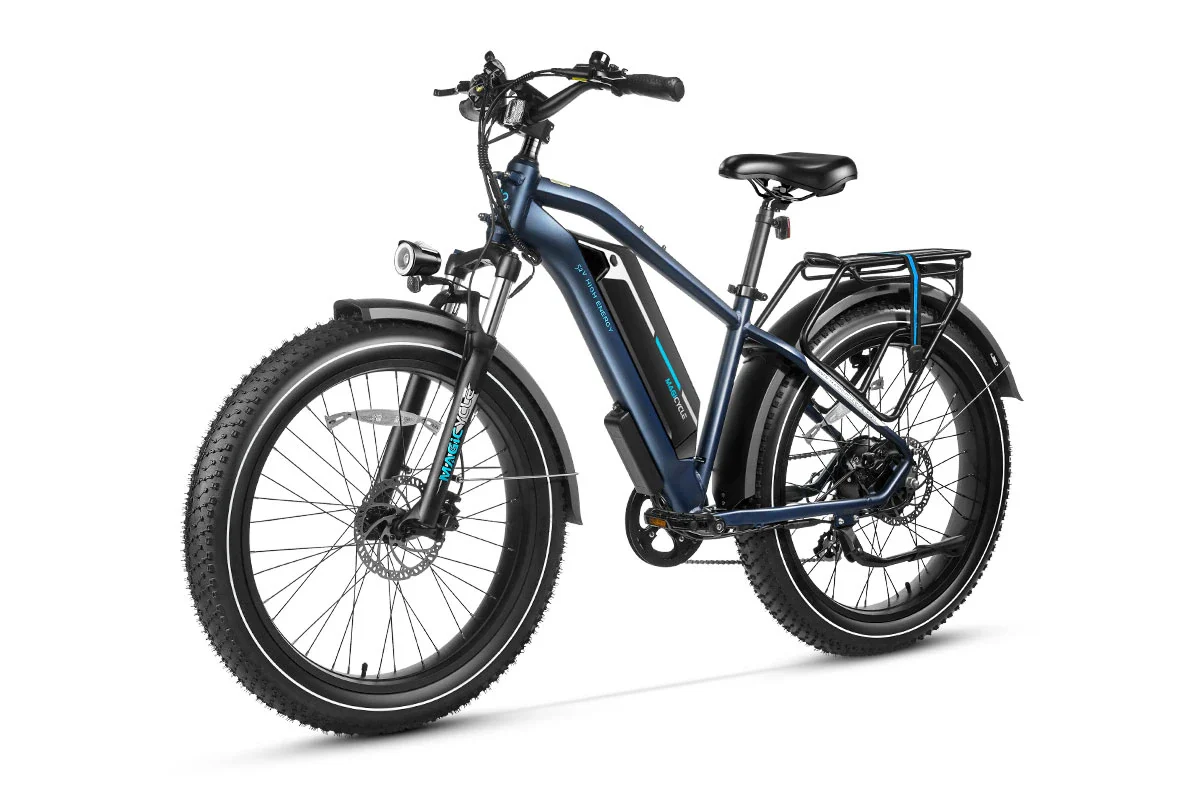

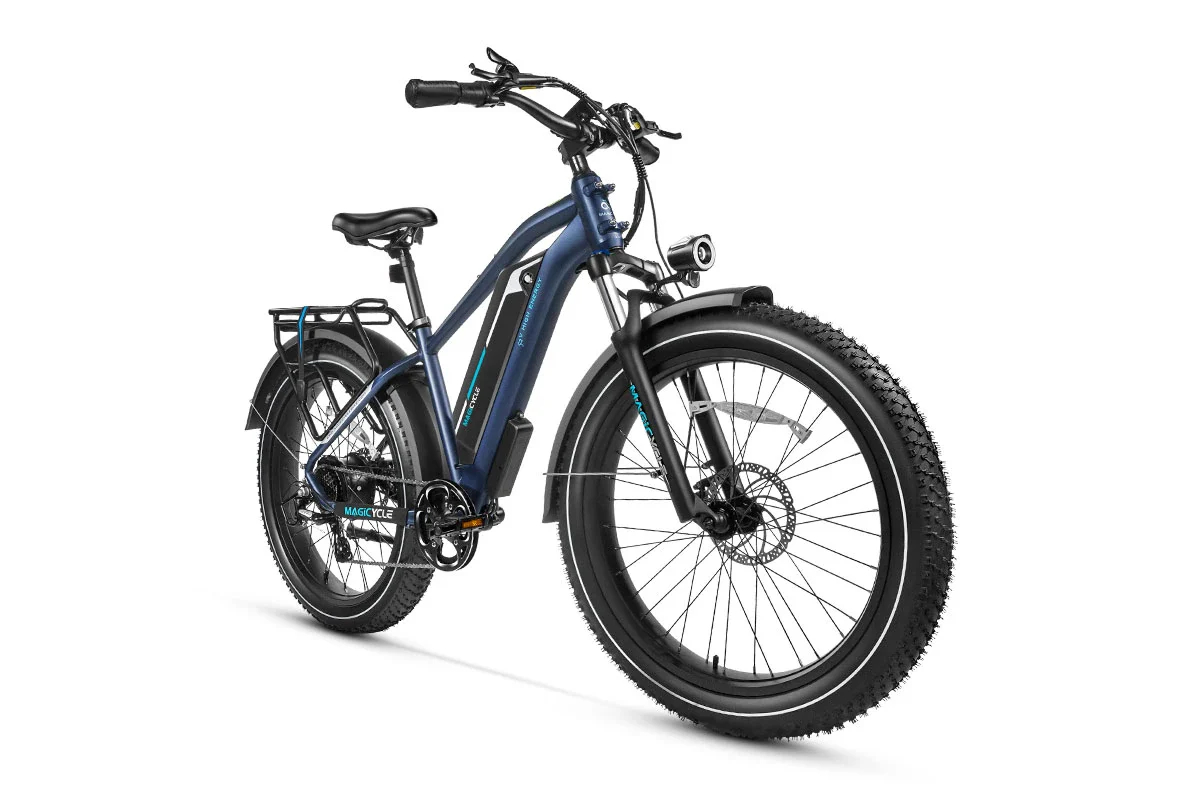

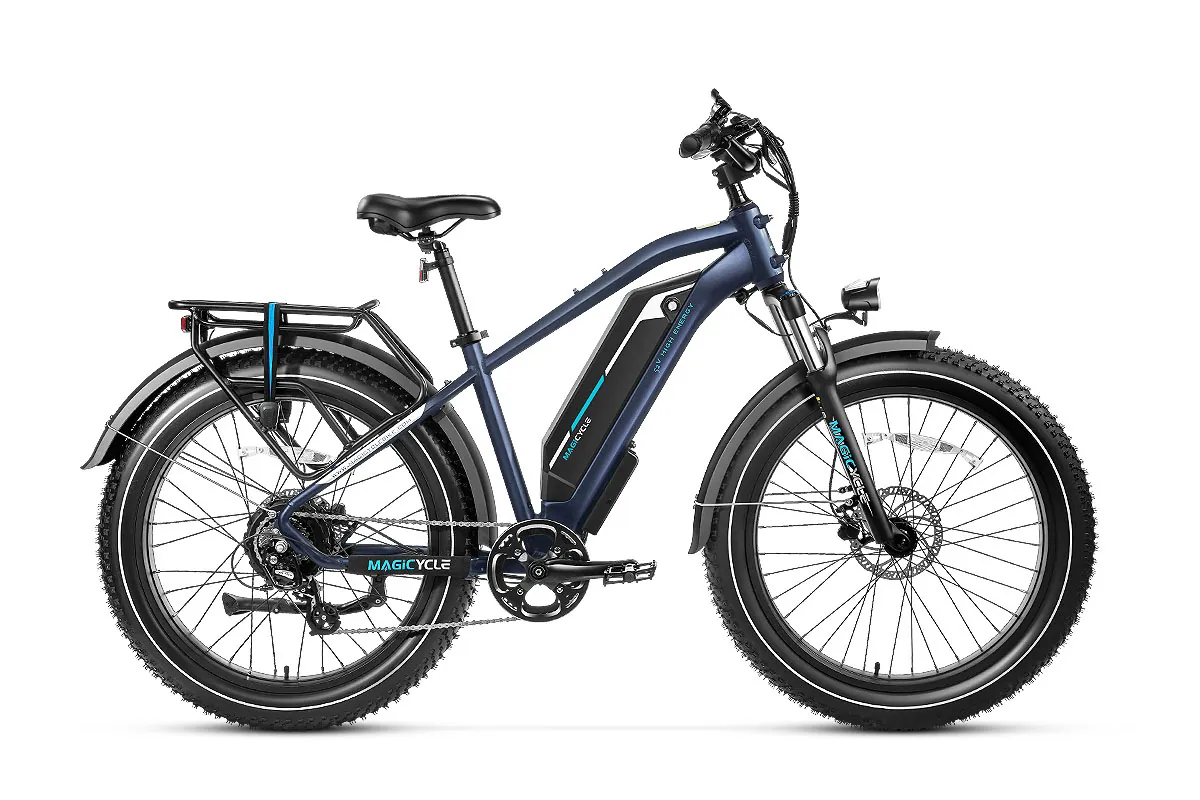

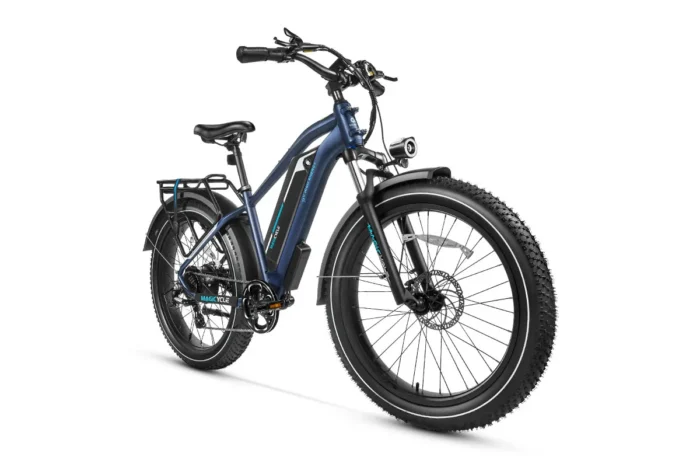

Magicycle 52V 20Ah Cruiser Pro Step-Over Ebike Cruiser

Original price was: $2,399.99.Current price is: $1,399.99.

A 28 MPH fat-tire e-bike with a beefy 52V 20 Ah battery, hydraulic suspension, and hydraulic brakes—built for long-range performance.

Description

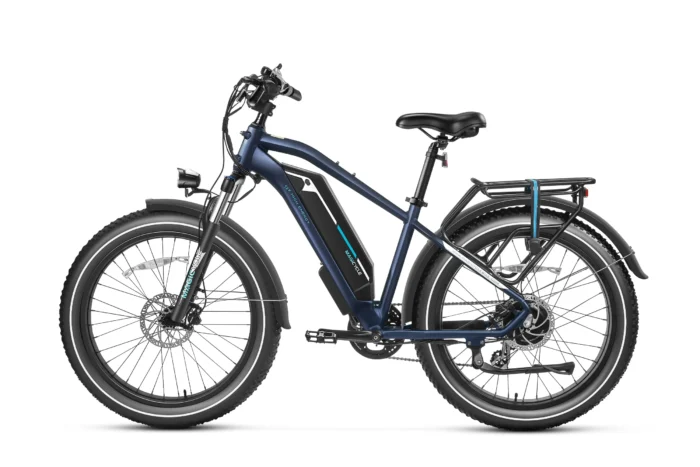

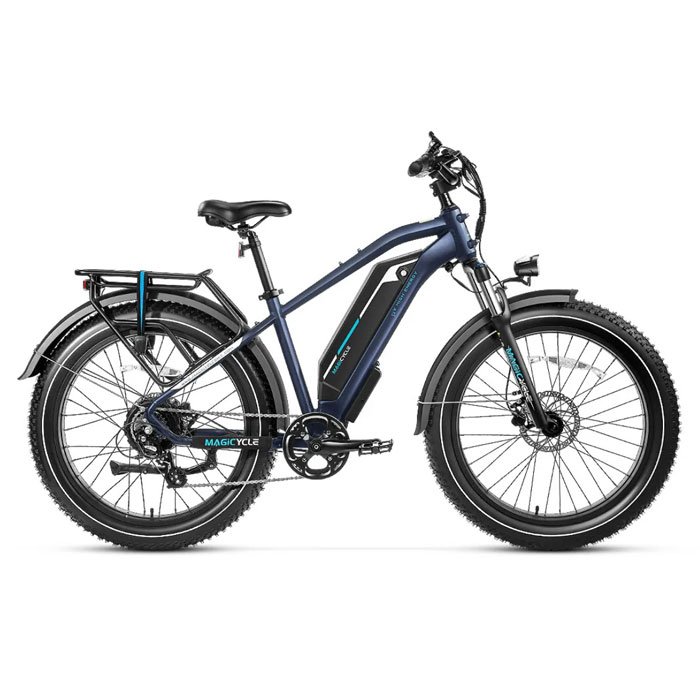

Magicycle Cruiser Pro Step-Over E-Bike – 52 V 20 Ah, 28 MPH, 100‑Mile Range

The Magicycle Cruiser Pro Step-Over is a powerful fat-tire e-bike designed for rugged commutes and long adventures. Featuring a robust 52V 20Ah battery and a 750W motor (1,500W peak), it pushes riders up to 28 MPH (Class 3) and delivers an impressive 60–100-mile range. Built on a durable 6061 aluminum frame with hydraulic front suspension and 26″ × 4″ Kenda tires, it balances speed, comfort, and reliability across terrains. Hydraulic Tektro 180 mm disc brakes offer strong stopping power, while Shimano 7-speed gears and a color LCD display with USB charging ensure smooth, controlled rides.

Key Features

  • High-Power Motor: 750 W hub motor (1,500 W peak) provides up to 100 Nm torque for fast acceleration and hill climbs.

  • Long-Range Battery: 52 V 20 Ah (1,040 Wh) LG battery delivers an estimated 60–100 mile range.

  • Fat Tires & Suspension: 26″ × 4″ Kenda puncture-resistant tires with hydraulic front suspension for a smooth ride.

  • Braking System: Dual Tektro 180 mm hydraulic disc brakes ensure safe and precise stopping power.

  • Customizable Ride: Shimano 7-speed drivetrain and 7-level pedal assist deliver performance on varied terrain.

  • Advanced Display: Full-color LCD with USB charging and smart controller allows customization of assist levels.

  • Heavy-Duty Build: 6061 aluminum frame supports up to 500 lb payload and stands up to rugged use.

Technical Specifications

Spec Details
Motor 750 W brushless geared hub (1,500 W peak, 100 Nm torque)
Battery 52 V 20 Ah (1,040 Wh) LG removable lithium
Range 60–100 miles (pedal-assist)
Top Speed Up to 28 MPH (Class 3)
Frame 6061 aluminum, 18″ stand-over, step-over
Tires 26″ × 4″ Kenda puncture-resistant fat tires

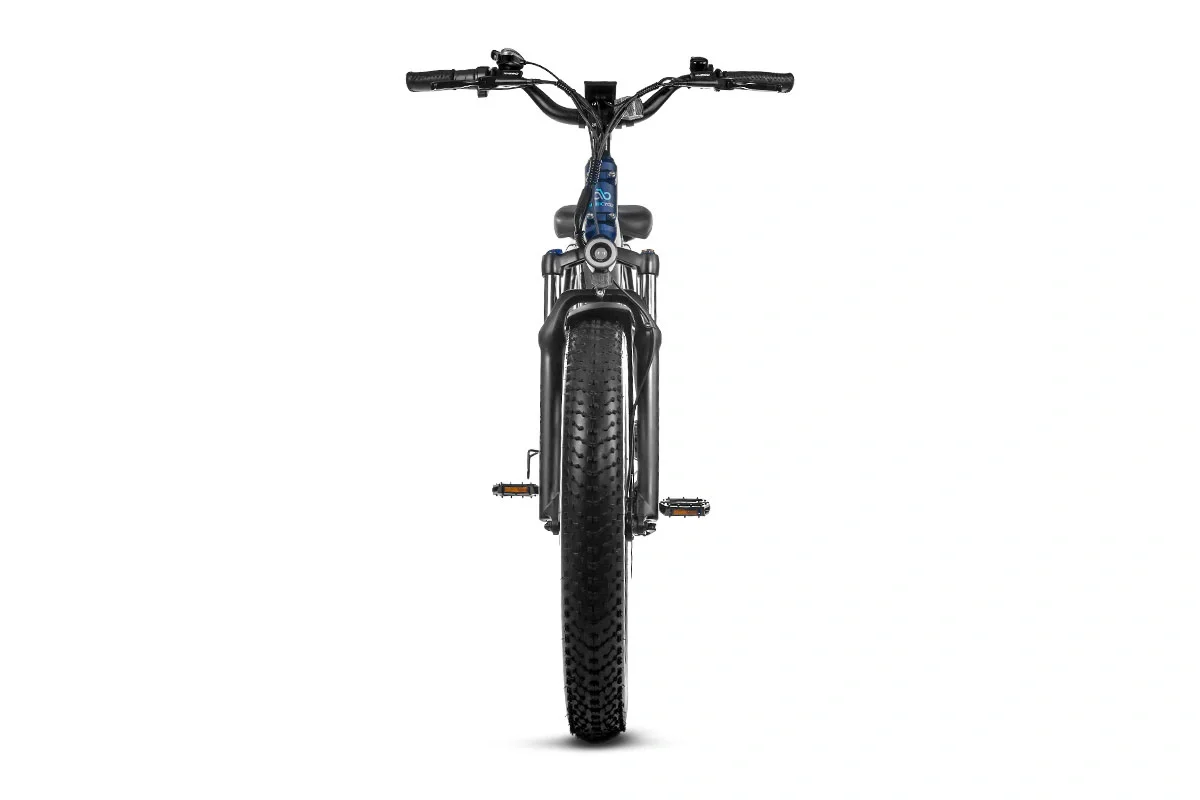

Suspension Hydraulic front fork with lockout
Brakes Dual 180 mm Tektro hydraulic disc brakes
Gearing Shimano 7-speed derailleur
Pedal Assist Levels 7 with 12-magnet cadence sensor
Display Full-color LCD with USB charging
Weight ≈76 lb (34.5 kg)
Payload Capacity Up to 500 lb (227 kg)
Additional information
Brand

Magicycle

Motor

750W

Range

Up to 100 miles per charge

Battery

52V 20Ah

Frame

6061 aluminum, 18″ stand-over, step-over

Suspension

Hydraulic front fork with lockout

Brakes

Dual 180 mm Tektro hydraulic disc brakes

Gears

Shimano 7 speed gear shift system

Display

Full-color LCD with USB charging

Payload Capacity

500 lbs

Top Speed

28 mph

Pattern

,

High-Power Motor

750W/1500W peak

Disc Brakes

Hydraulic

Charger

Short-circuit proof 3.0A fast smart charger

Charging Time

4 – 6 Hours

Controller

52V 750W FOC smart controller (IPX8)

Weight

76lbs/34.5kg

Hub Motor

750W/1500W(peak) 100Nm brushless gear motor

Package Dimension

60.43" x 14.17" x 34.96"/ 153.5CM x 36CM x 88.8CM

Pedal Assist

Intelligent 7 levels pedal assist with 12 magnet cadence sensor

Tire Size

26" x 4"

Tire Type

Fat Tires

Front Light

6V LED light

Front Fork

Alloy hydraulic suspension front fork with lockout and adjustment

Chain

KMC chain

Brake Lever

Aluminum alloy comfort grip levers with motor cutoff switch

Saddle

Soft and comfortable

Throttle

Half twist throttle

Stem

MA-400 SSABK

Lights

Integrated front and brake lights

Seat Post

Diameter 30.9mm length 300mm

Pedal

Wellgo alloy pedal with reflectors

Crank

42T,170mm forged alloy, dual-sided bashguard

Freewheel

Shimano-14-28T BROWN/BK

Kickstand

Heavy duty aluminum

Spokes

13 Gauge on the front / 12 Gauge on the back
