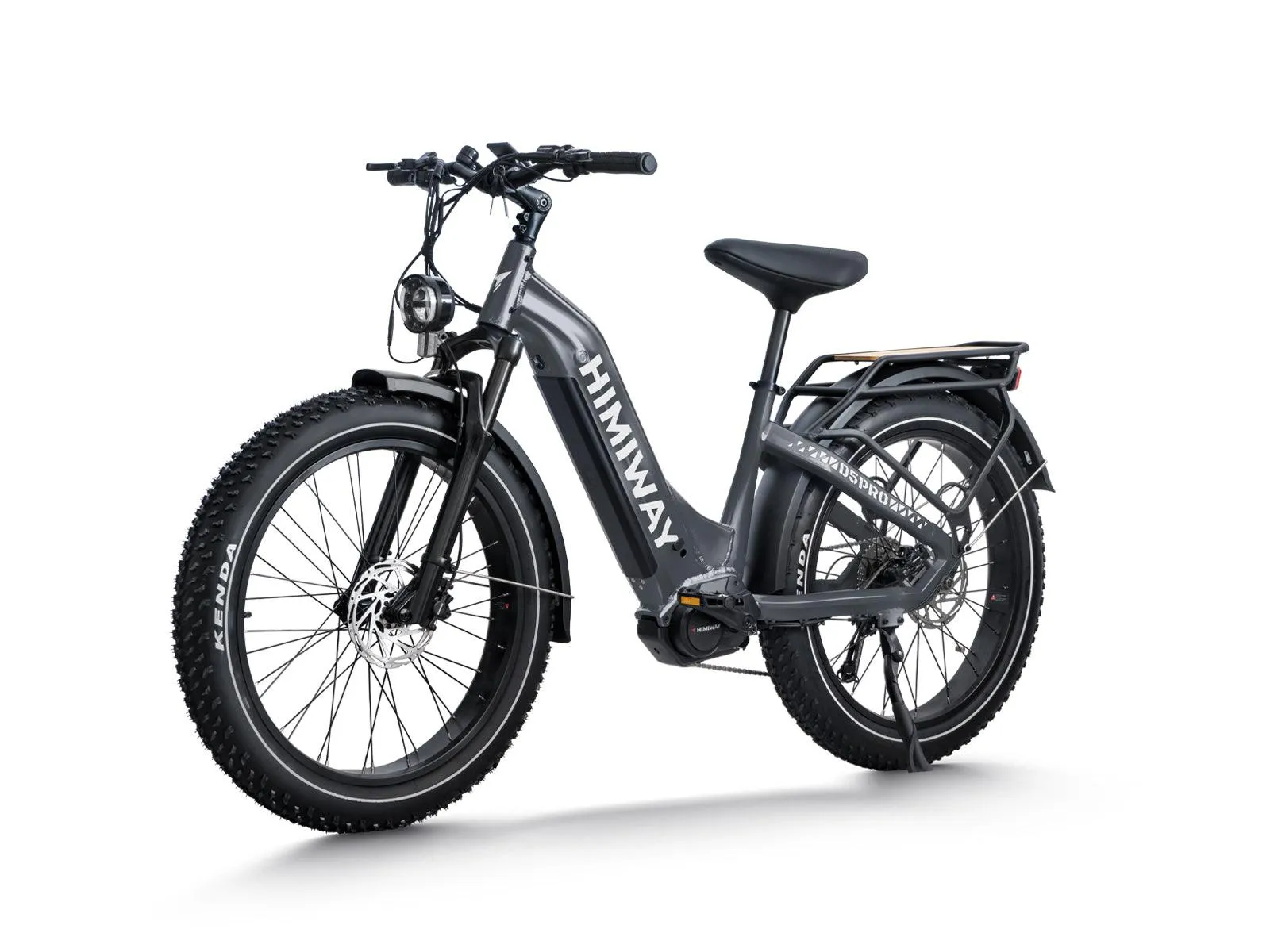

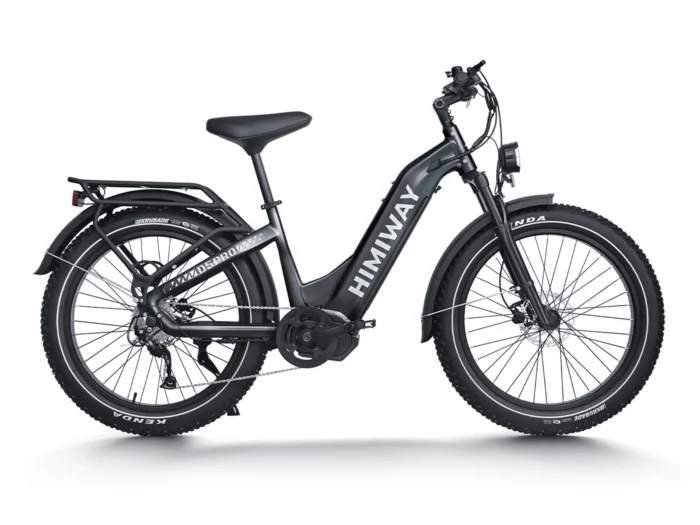

D5 Pro ST – Step-Thru – Space Grey
Original price was: $2,799.00.$2,499.00Current price is: $2,499.00.
Step-thru all-terrain fat bike with a 500W mid-drive motor, ~80-mile range, and 400 lb capacity — built for rugged roads and easy access.
The Himiway D5 Pro ST is a premium all-terrain fat-tire eBike built for riders who want power, comfort, and accessibility. Its 500W mid-drive motor with torque sensor delivers robust performance through hills and rough terrain, backed by a large 960Wh Samsung/LG battery for up to 60-80 miles of pedal-assist range. With 26×4″ fat tires, hydraulic disc brakes, and a heavy-duty frame rated for a 400 lb payload, it handles snow, sand, and trails confidently. The step-thru (ST) variant lowers the frame height for easier mounting and better usability, making it ideal for riders of many sizes or those aiming for versatile all-day performance.
Top 3 Features
-
500W mid-drive motor with torque sensor — strong power and better hill-climb performance.
-
48V 20Ah Samsung/LG battery (~960Wh) delivering 60-80 miles range under pedal assist.
-
High payload capacity (400 lb), fat 26″×4.0″ tires, hydraulic disc brakes (180mm), and a robust frame for all-terrain durability.
Tech Specs Summary
| Spec | Detail |
|---|---|
| Battery | 48V, 20Ah (≈ 960Wh) Samsung/LG battery |
| Motor | 500W mid-drive with torque sensor |
| Range | 60-80 miles with pedal-assist under good conditions |
| Weight | ~79 lb (with battery) |
| Tires | 26″ × 4.0″ fat tires |
| Brakes | Hydraulic disc brakes, 180mm rotors front and rear |
| Controller | 48V/22A controller |
| Charger | U.S. standard 3.0A fast charger |
| Display & Sensors | KD718-P LCD display, thumb throttle; sensors for torque, speed, shifting, brake cut-off |
| Max Payload | ~400 lb (rider + cargo) |
| Rider Height Range | ~5′3″ to ~6′5″ |
| Brand |
Himiway |
|---|---|
| Battery |
960 Wh Samsung/LG Battery |
| Range |
Up to 80 miles per charge |
| Motor |
500W |
| Top Speed |
20+ MPH |
| Payload Capacity |
400 lb. |
| Tire Size |
26*4.0" |
| Tire Type |
Fat Tires |
| Warranty |
2-Year Warranty |
| Frame |
6061 Aluminum frame |
| Headset |
Neco H156EM 28.6*44-56*30 |
| Fork |
TRAMA FAT34-PLS-26" 100mm travel 15*135mm thru axle |
| Shock |
Alloy front suspension fork with lockout and adjustment |
| Front wheel |
Rim: MD-147 26*4.0"*36H*12G A/V |
| Rear wheel |
Rim: MD-147 26*4.0"*36H*12G A/V ,Spoke: 12G 256/257L stainless (304M) ,Hub: GSMB019R-190F-GM14 |
| Display |
KD718-P LCD display with Type-c charger |
| Throttle |
Thumb throttle |
| Sensor Type | |
| Crankset |
Crankarm: Prowheel 170mm / Chain ring: 44T BCD104 |
| Freewheel |
Shimano CS-HG201-9 11-36T |
| Chain |
KMC E9 EPT 124L |
| Groupset |
Shimano altus M2000 9 speed |
| Front Brake |
Tektro HD-E3520 hydraulic brake |
| Rear Brake |
Tektro HD-E3520 |
| Rotors |
Tektro TR180-52 F:180mm R:180mm |
| Stem |
Zoom TDS-C269-8FOV 31.8*90mm |
| Handlebar |
Promax HB-3188 22.2*31.8*700mm |
| Seatpost |
Himiway Seatpost |
| Saddle |
Himiway Saddle |
| Pedal |
Aluminum pedal |
| Lights |
48V LED light |
| Kickstand |
Heavy-duty aluminum kickstand |
