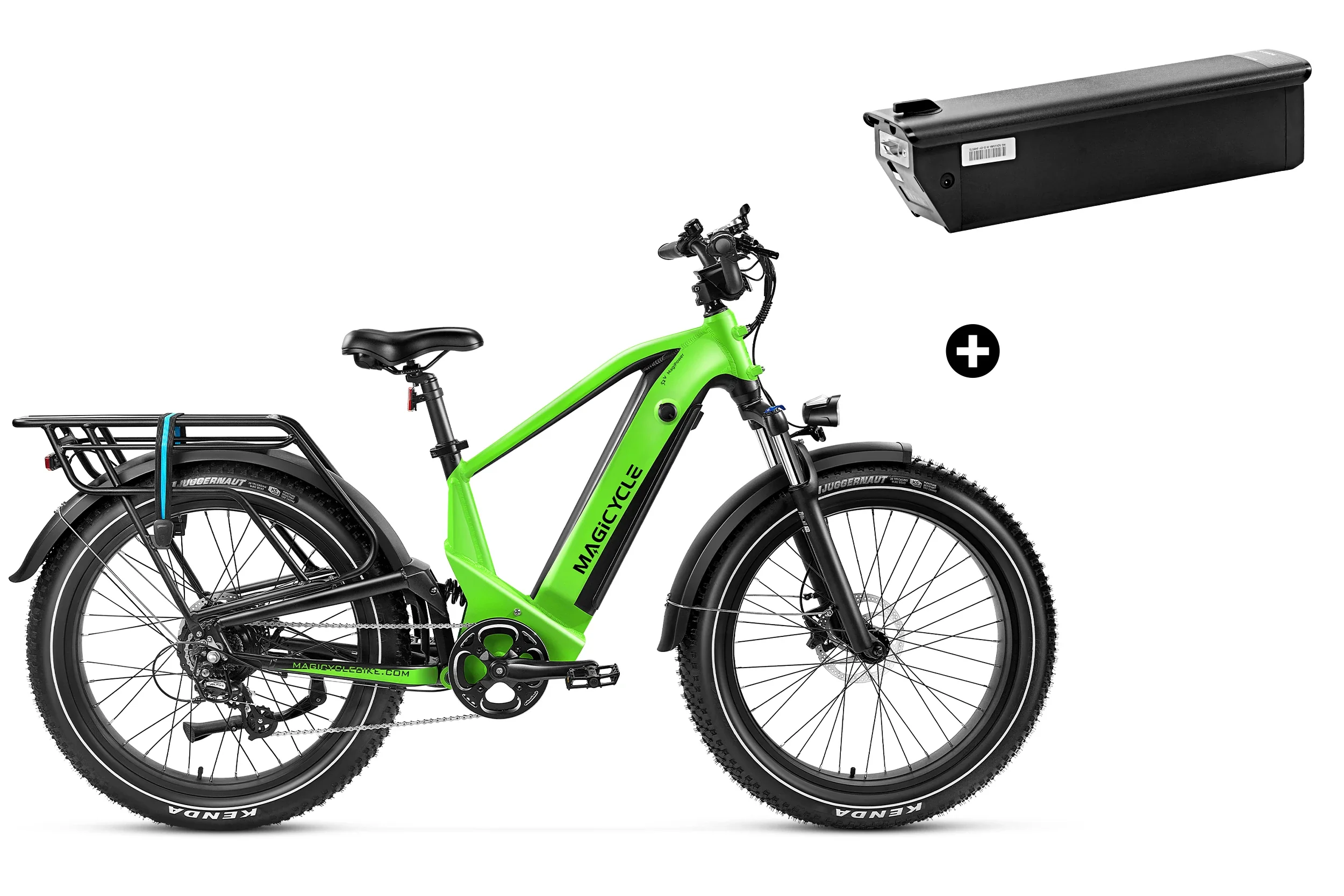

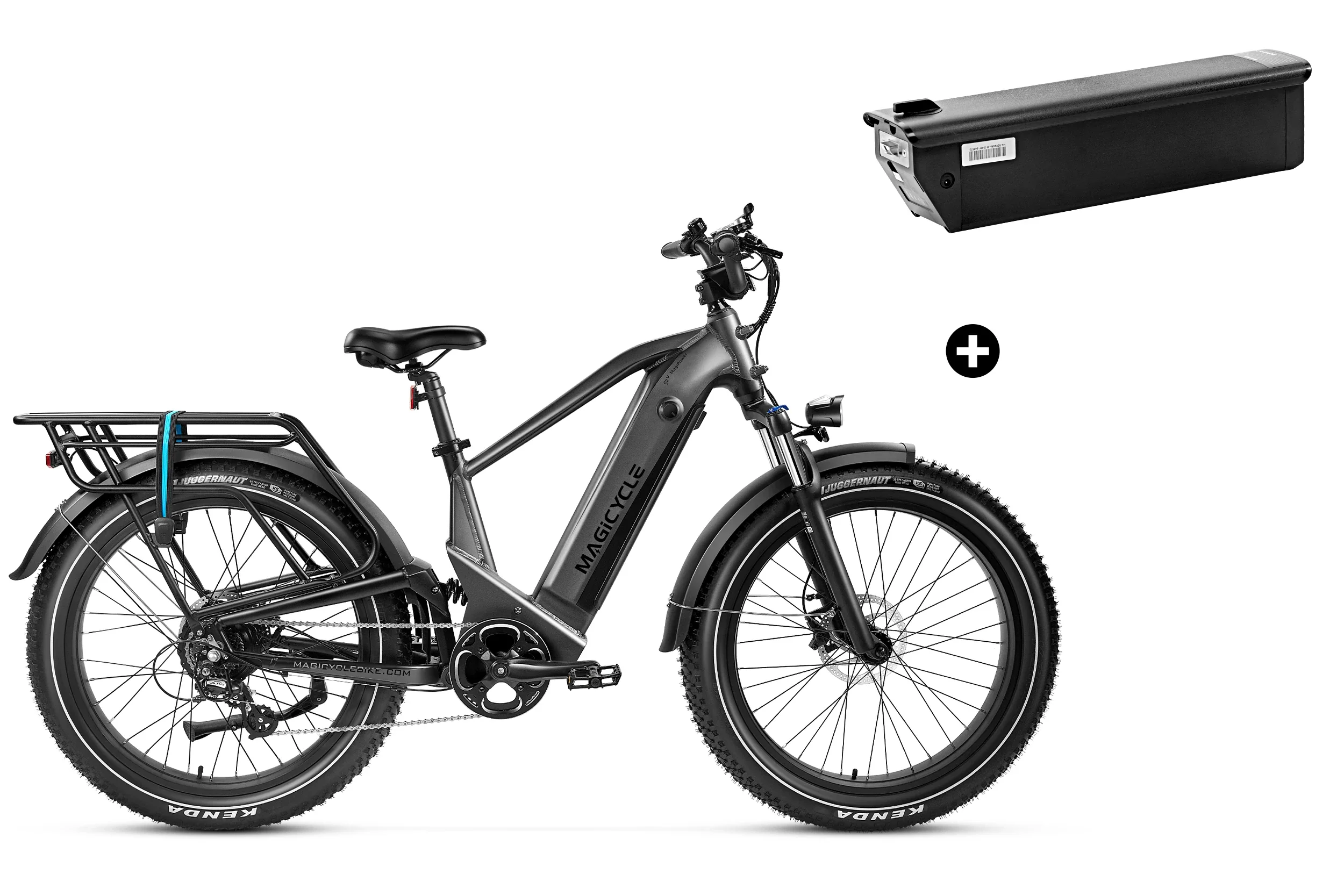

Magicycle Deer Step-over E-Bike With An Extra 20Ah Battery
Original price was: $3,148.00.$2,149.00Current price is: $2,149.00.
A full-suspension fat-tire e-bike bundle with dual 20 Ah batteries, 750 W motor, and rugged off-road capability—perfect for epic long-range adventures.
The Magicycle Touring E‑Bike Bundle includes a full-suspension fat-tire e-bike and an additional 52V 20Ah battery, ideal for long-distance Touring adventures. With a powerful 750 W motor (1,500 W peak), full hydraulic suspension, and rugged design, this setup delivers up to 100 miles per charge and supports a 450 lb payload.
Key Features
-
750 W Hub Motor (1,500 W Peak): Delivers strong acceleration and torque for trail riding.
-
Dual 52 V 20 Ah Batteries: Doubles range—up to an estimated 200 miles in total.
-
Full Hydraulic Suspension: Front and rear shocks ensure a smooth, controlled ride across rough terrain.
-
26″×4″ Fat Tires: Provide stability, traction, and comfort on sand, snow, and dirt roads.
-
Hydraulic Disc Brakes: Dual 180 mm brakes offer safe and responsive stopping.
-
450 lb Payload Capacity: 6061 aluminum frame accommodates riders and cargo.
Technical Specifications
| Specification | Details |
|---|---|
| Motor | 750 W (1,500 W peak), ~100 Nm torque hub |
| Battery | Dual 52 V 20 Ah lithium packs (total 2,080 Wh) |
| Range | Approx. 100 miles per battery (≈200 miles total) |
| Top Speed | Up to 28 MPH (Class 3 pedal assist) |
| Suspension | Hydraulic fork + rear shock |
| Tires | 26″×4″ fat tires |
| Brakes | Dual 180 mm hydraulic discs |
| Frame | 6061 alloy supports a 450 lb payload |
| Weight | Approx. 92 lb (41.9 kg) |
| Brand |
Magicycle |
|---|---|
| Motor |
750W |
| Battery |
52V 20Ah Lithium Battery |
| Range |
Up to 100 miles per charge |
| Top Speed |
28 MPH (Class 3) |
| Suspension |
Front hydraulic fork + rear shock |
| Tire Size |
26″×4″ |
| Tire Type |
Fat Tires |
| Brakes |
Dual 180 mm hydraulic discs |
| Frame |
6061 Alloy Supports a 450 lb Payload |
| Full Suspension |
Front & Rear Shock |
| High-Power Motor |
750W/1500W peak |
| Payload Capacity |
Max 450 lbs |
| Charging Time |
4 – 7Hours |
| Weight |
Deer 26": 92.3lbs(41.9kg) / 20": 83lbs(37.6kg) |
| Package Dimension |
Deer 26": 166CM x 33CM x 88.5CM /20": 154CM x 32CM x 77.5CM; |
| Charger |
Short-circuit proof 3.0A fast smart charger |
| Recommended Rider Heights |
Deer 26": 5'5" – 6'8" / 20": 4'10" – 6'2" |
| Hub Motor |
750W/1500W(peak) 100Nm brushless gear motor(IP55) |
| Controller |
52V 750W FOC smart controller, Current Range 20~25 Amps (IPX8) |
| Frame size |
18" |
| Display |
Color LCD Display with USB Charging |
| Pedal Assist |
7-level Intelligent pedal assist with 12-magnet cadence sensor |
| Brake Lever |
Aluminum alloy comfort grip levers with motor cutoff switch |
| Lights |
Integrated front and brake lights |
| Freewheel |
Shimano-14-28T BROWN/BK |
| Spokes |
13 Gauge on the front / 12 Gauge on the back |
| Front Light |
6V LED light |
| Saddle |
Super Soft Cushion |
| Seat Post |
Diameter 33.9mm length 250mm |
| Kickstand |
Heavy duty aluminum |
| Bike Frame |
18" 6061 Aluminum Frame |
| Front Fork |
Alloy Hydraulic lockout suspension fork |
| Throttle |
Half twist throttle |
| Pedal |
Wellgo alloy pedal with reflectors |
| Gearing |
Shimano 7 speed gear shift system |
| Chain |
KMC chain |
| Stem |
MA-400 SSABK |
| Crank |
53T, 170mm forged alloy, dual-sided bashguard |
